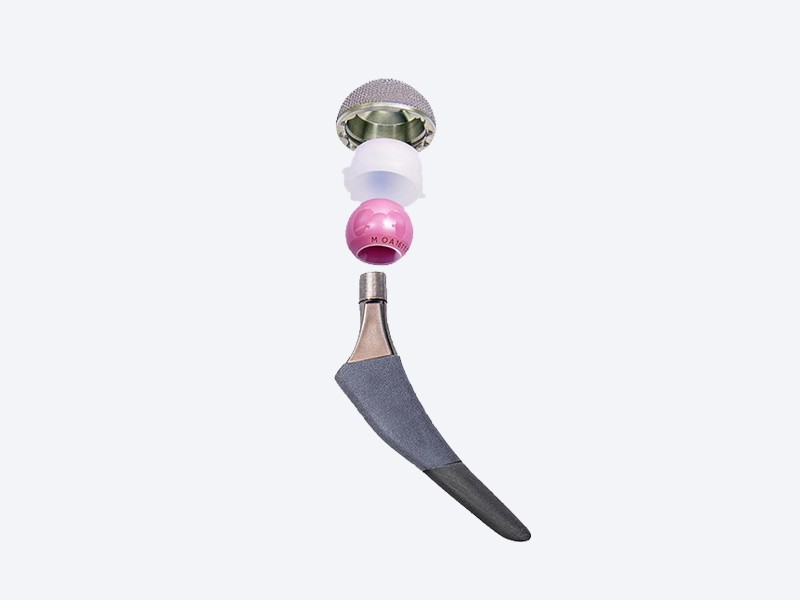

biological femoral stem titanium coating

130° neck-shaft angle design with multiple neck length options adjusts soft tissue tension, enhances joint stability, restores limb length, and thereby ensures optimal joint mobility.

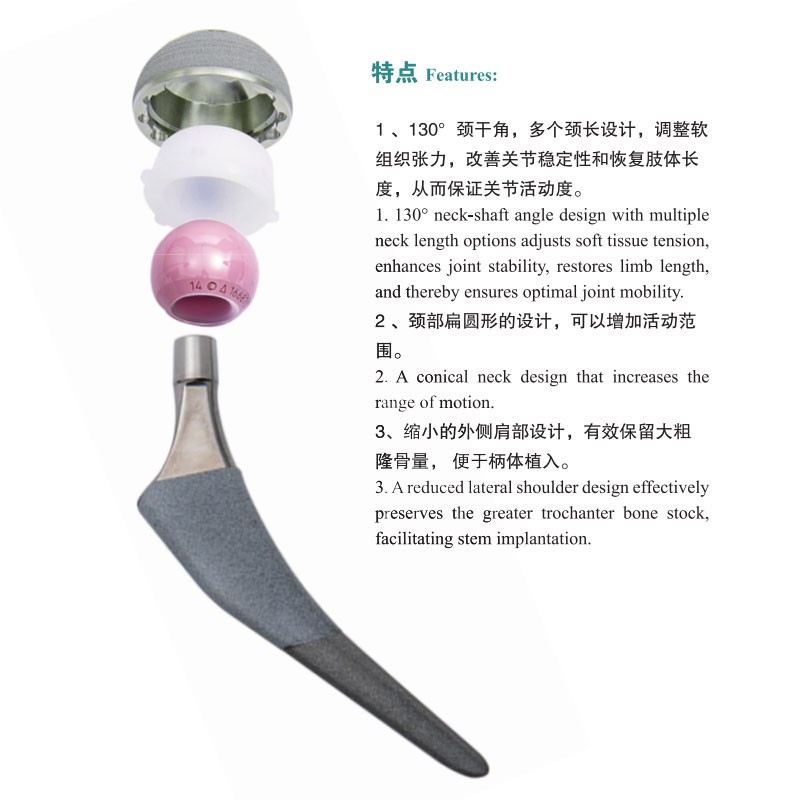

Product Features:

1、130° neck-shaft angle design with multiple neck length options adjusts soft tissue tension, enhances joint stability, restores limb length, and thereby ensures optimal joint mobility.
2、A conical neck design that increases the range of motion.
3、A reduced lateral shoulder design effectively preserves the greater trochanter bone stock, facilitating stem implantation.
4、Proximal fixation ensures anti-rotational stability; distal small size reduces thigh pain incidence; retains more bone stock for future revisions; preserves more endosteal blood supply, ensuring good cortical bone vascularity, conducive to bone ingrowth.
5、A proximal pure titanium spray design provides reliable biological fixation, facilitates bone ingrowth, and offers long-term fixation strength.
6、A distal groove design provides channels for blood and debris expulsion during implantation.
7、Offers up to 12 prosthetic sizes, aiding in matching femoral canal and limb length reconstruction.
8、The sys
  • Product Introduction
  • Product Specifications

1、130° neck-shaft angle design with multiple neck length options adjusts soft tissue tension, enhances joint stability, restores limb length, and thereby ensures optimal joint mobility.
2、A conical neck design that increases the range of motion.
3、A reduced lateral shoulder design effectively preserves the greater trochanter bone stock, facilitating stem implantation.
4、Proximal fixation ensures anti-rotational stability; distal small size reduces thigh pain incidence; retains more bone stock for future revisions; preserves more endosteal blood supply, ensuring good cortical bone vascularity, conducive to bone ingrowth.
5、A proximal pure titanium spray design provides reliable biological fixation, facilitates bone ingrowth, and offers long-term fixation strength.
6、A distal groove design provides channels for blood and debris expulsion during implantation.
7、Offers up to 12 prosthetic sizes, aiding in matching femoral canal and limb length reconstruction.
8、The system includes 12 canal broaches, enabling direct medullary canal preparation without reaming, significantly reducing surgical time and enhancing procedural safety.


Product Code
PC
Specification
Spec
Stem Length
SL
Neck Length
NL
Distal Diameter
DD
Neck-Shaft Angle
NSA
2012-03000#111mm27mm4.8mm130°
2012-03011#114mm27mm6.1mm130°
2012-03022#117mm30mm6.9mm130°
2012-03033#120mm30mm7.8mm130°
2012-03044#123mm35mm8.6mm130°
2012-03055#126mm35mm9.3mm130°
2012-03066#129mm35mm9.7mm130°
2012-03077#132mm37mm10.3mm130°
2012-03088#135mm37mm10.9mm130°
2012-03099#138mm37mm11.5mm130°
2012-031010#141mm40mm12.1mm130°
2012-031111#144mm40mm12.7mm130°
