Tibial Insert
Tibial Insert
Smooth anterior arc prevents patellar impingement in high flexion.Cam/Post engages at 45° flexion for enhanced stability and deep flexion.
Product Features:
1、Smooth anterior arc prevents patellar impingement in high flexion.2、Cam/Post engages at 45° flexion for enhanced stability and deep flexion.
3、Spherical arc surface increases conformity and rotation.
4、Multiple sizes ensure clinical fit.
1、Smooth anterior arc prevents patellar impingement in high flexion.
2、Cam/Post engages at 45° flexion for enhanced stability and deep flexion.
3、Spherical arc surface increases conformity and rotation.
4、Multiple sizes ensure clinical fit.
| Product Code PC | Specification Spec | Thickness Thk |
|---|---|---|
| 3027-0111 | 3#/9 | 9mm |
| 3027-0112 | 3#/11 | 11mm |
| 3027-0113 | 3#/13 | 13mm |
| 3027-0114 | 3#/16 | 16mm |
| 3027-0121 | 4#/9 | 9mm |
| 3027-0122 | 4#/11 | 11mm |
| 3027-0123 | 4#/13 | 13mm |
| 3027-0124 | 4#/16 | 16mm |
| 3027-0131 | 5#/9 | 9mm |
| 3027-0132 | 5#/11 | 11mm |
| 3027-0133 | 5#/13 | 13mm |
| 3027-0134 | 5#/16 | 16mm |
| 3027-0141 | 6#/9 | 9mm |
| 3027-0142 | 6#/11 | 11mm |
| 3027-0143 | 6#/13 | 13mm |
| 3027-0144 | 6#/16 | 16mm |
| 3027-0151 | 7#/9 | 9mm |
| 3027-0152 | 7#/11 | 11mm |
| 3027-0153 | 7#/13 | 13mm |
| 3027-0154 | 7#/16 | 16mm |
| 3027-0161 | 8#/9 | 9mm |
| 3027-0162 | 8#/11 | 11mm |
| 3027-0163 | 8#/13 | 13mm |
| 3027-0164 | 8#/16 | 16mm |
| 3027-0171 | 9#/9 | 9mm |
| 3027-0172 | 9#/11 | 11mm |
| 3027-0173 | 9#/13 | 13mm |
| 3027-0174 | 9#/16 | 16mm |
High flexion non-constrained knee system
The high flexion unconstrained knee joint system addresses three major surgical pain points, featuring human body size design and a wider range of model options to solve matching issues.
Femoral Condyle
The design featuring a single radius curvature of 0-90° ensures consistent tension in the collateral ligaments during knee flexion and extension.
Tibial Insert
The front of the gasket features a smooth, rounded design to prevent patellar impact syndrome during high flexion. The Cam/Post mechanism comes into contact at 45° of flexion, enhancing stability and accommodating deep flexion.
Tibial Tray
Fully enclosed combination design for the platform. The gasket features a direct locking mechanism, which avoids the metal ionization phenomenon caused by traditional metal ring lock mechanisms and significantly reduces the additional wear caused by minor movements.
Patella
The dome-shaped patella exhibits superior tolerance compared to other designs and can provide more reliable and appropriate contact;

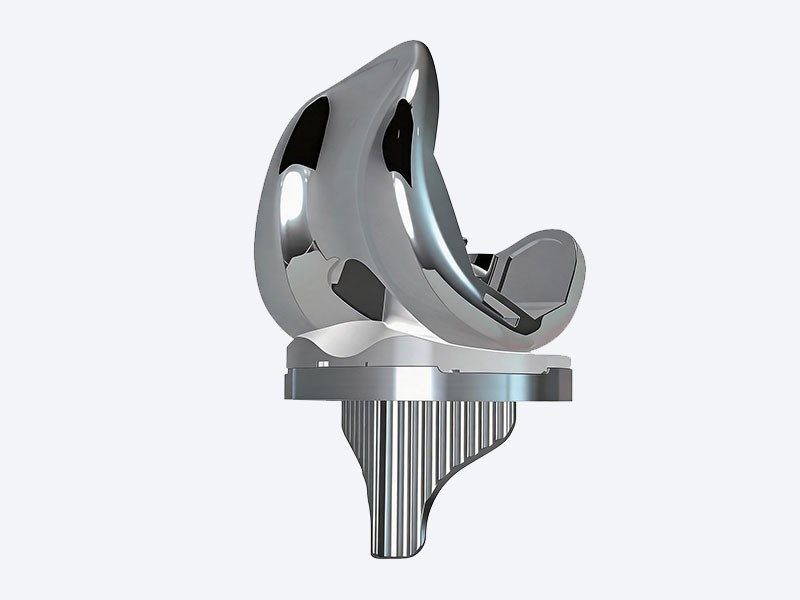

Knee Replacement System
Up to 150° of high flexion, mimicking natural knee motion to restore physiological movement patterns.

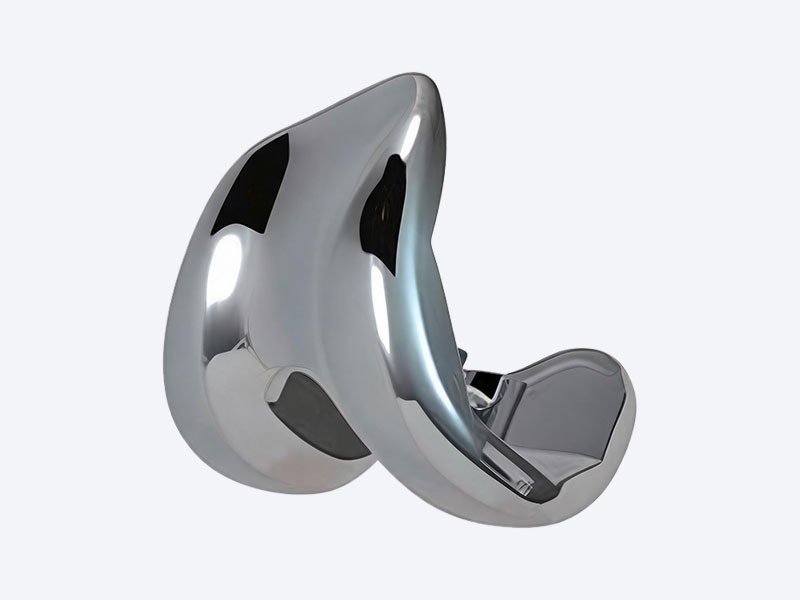

Femoral Condyle
Restoration of physiological knee kinematics: 150° high flexion with ±20° internal-external rotation.

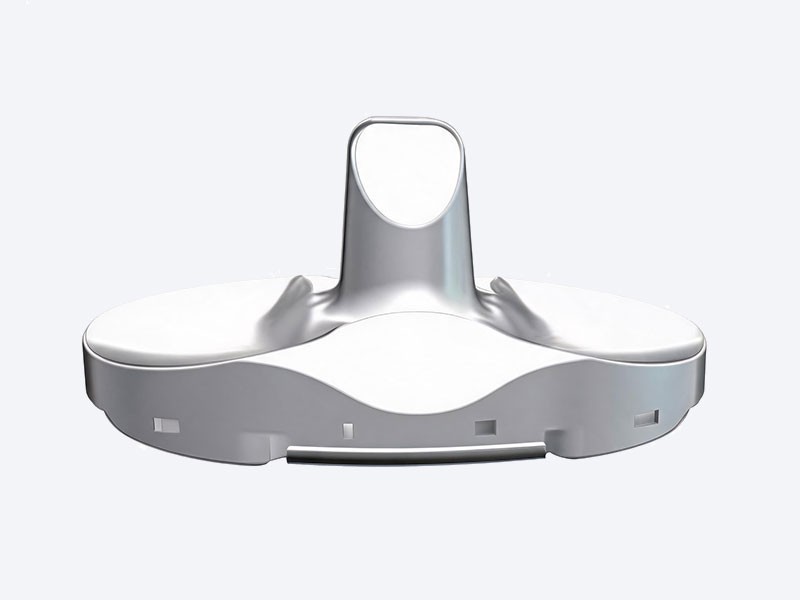

Tibial Insert
Smooth anterior arc prevents patellar impingement in high flexion.Cam/Post engages at 45° flexion for enhanced stability and deep flexion.
Tibial Tray
The design featuring a full-week locking edge and anti-rotation island can minimize wear and tear to the greatest extent possible.
